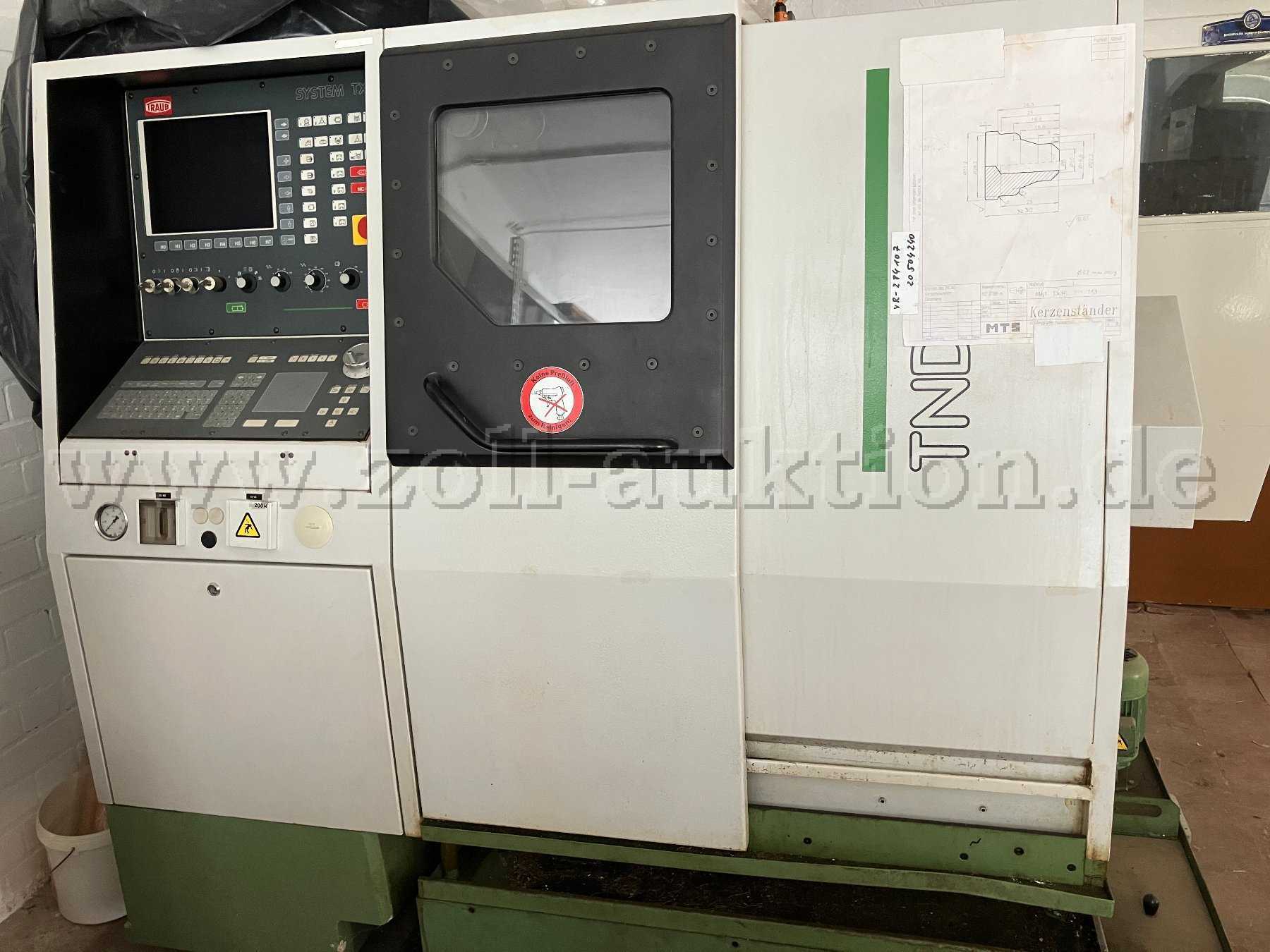

CNC Lathe TRAUB TND 200

Esasy maglumatlar

Onduriji

TRAUB

Yyl

1992

Yagday

Good

Kategoriya

CNC Machines

Düsündiris

TRAUB CNC turning machine, model TND 200, acquired circa 1992. Features include spindle head-through bore Ø42 mm, maximum turning diameter over carriage 160 mm, and over bed 340 mm. Chuck diameter 140/152 mm. Power delivery at 100% duty 5.5 kW and at 50% duty 7.5 kW, with a constant power range of 1:8. Spindle speed ranges from 10 to 5000 min-1. Tooling comprises 12 stations with DIN 69880 tool shanks (nominal Ø x length 30 x 50 mm). The machine has X-axis (sliding saddle) rapid traverse of 12,000/10,000 mm/min with a cutting feed force of 2,400 N, and Z-axis rapid traverse of 15,000/10,000 mm/min with a feed force of 2,900 N. Each tool carrier includes a single-stage centrifugal pump. The coolant container holds 135 L and the central lubrication system 5 L. Electrical connection is via a CEE plug with a connected load of 20 kW. Overall dimensions are 2,215 × 1,515 × 1,850 mm and the machine weighs approximately 2,900 kg. Operating hours: about 8,273 h. The unit was used until the 2015/2016 school year and was fully functional until then; regular maintenance has not occurred since and should be performed before recommissioning. Before transport, the oil should be drained. No CE marking on the machine; the computer and monitor have CE marking. Visible signs of use include dust and scratches. No purchase documents or warranty certificates are available.
